Renogy 200 Watts 12 Volts Monocrystalline RV Solar Panel Kit with Adventurer 30A LCD PWM Charge Controller and Mounting Brackets for RV, Boats, Trailer, Camper, Marine, Off-Grid Solar Power System

[Efficient]High solar cell efficiency : Monocrystalline 21%. Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments

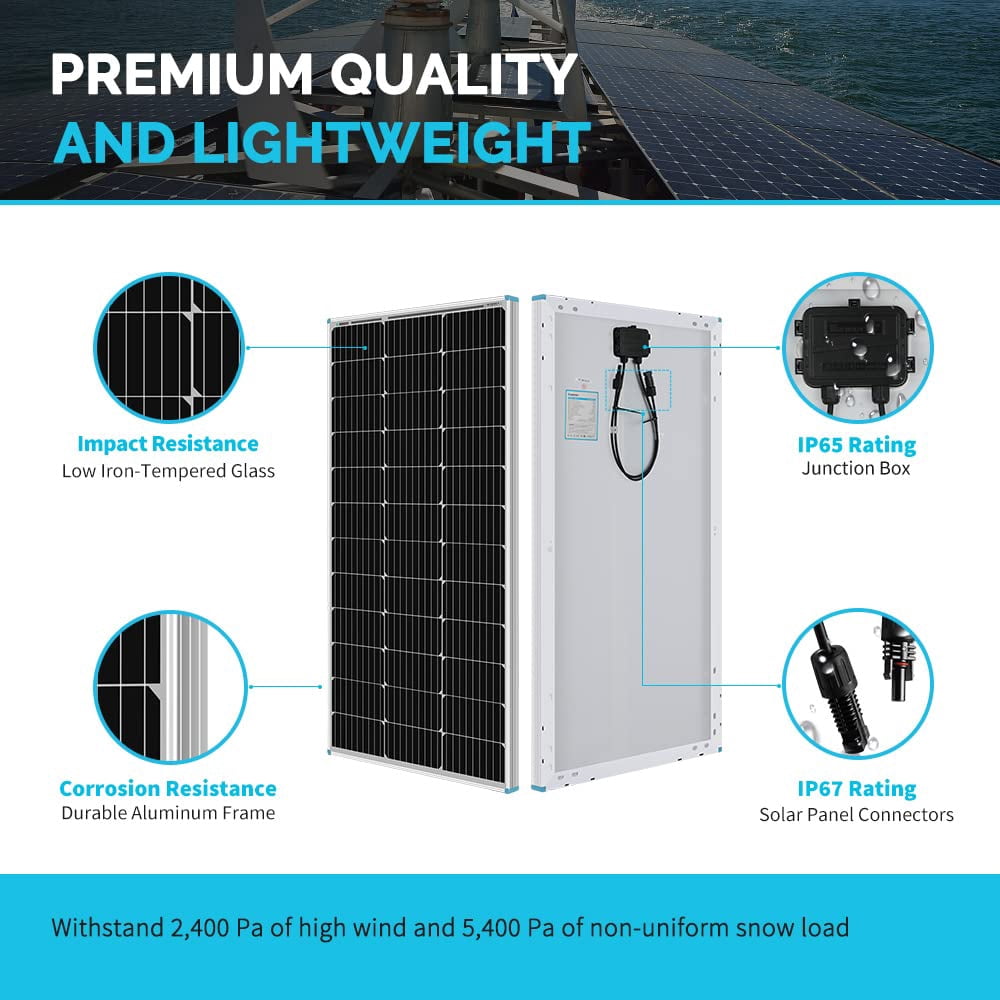

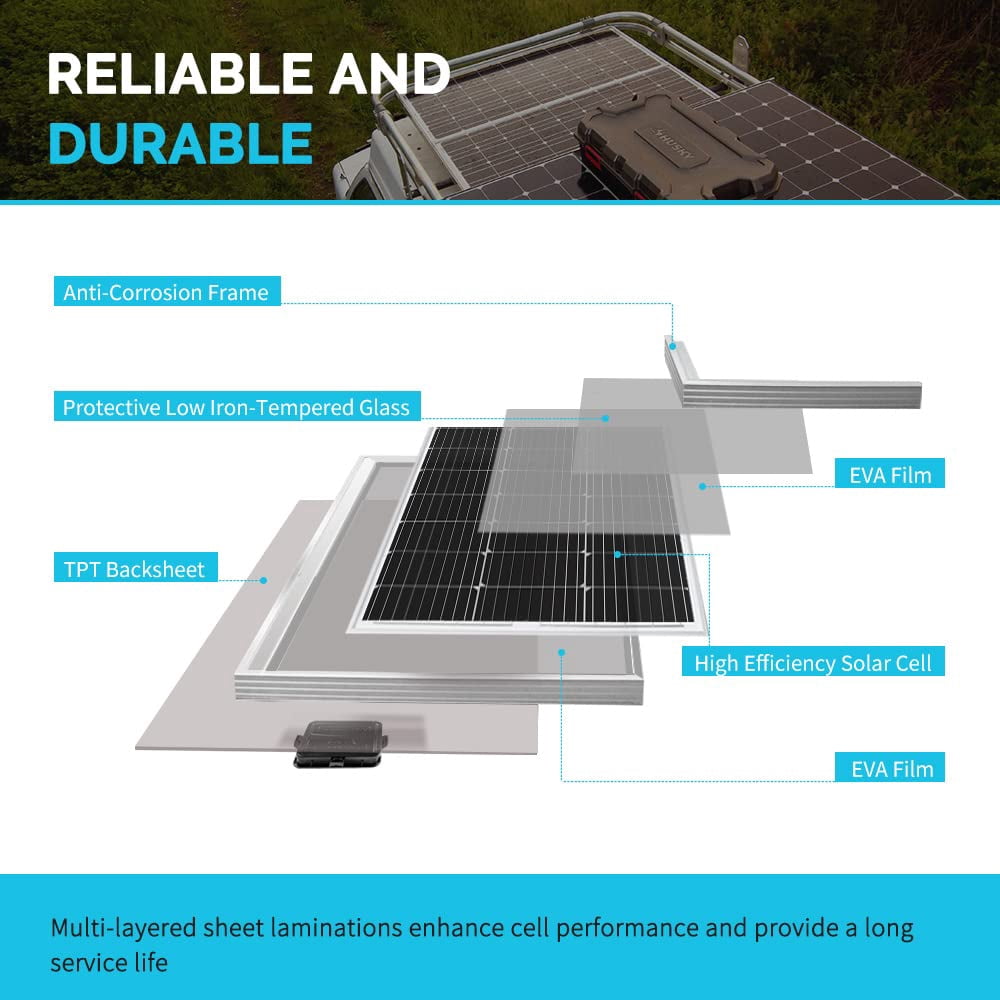

 [Reliable]EL tested solar modules; no hot-spot heating guaranteed. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades. TPT back sheet ensures smooth performance over a long period of time.
 [Intuitive]Sealed, Gel and Flooded charging algorithim ready 4-Stage battery charging process for a rapid, efficient, and safe battery charging. Remote monitoring and control via Bluetooth
 [Safe]The Renogy Adventurer is equipped with multiple electronic protections: reverse current, overcharging, short-circuit and reversed polarity. Pre-drilled holes on the back of the panel allow for fast and secure mounting.
 [Expandable]With the Renogy Adventurer 30A PWM Flush Mount Charge Controller, you can expand your system up to a maximum of 400W. The Renogy 100W Monocrystalline Expansion Kit is the perfect solution for future expansion.

Specifications:
 RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
 Maximum Power: 100W
 Maximum System Voltage: 600V DC (UL)
 Open-Circuit Voltage (Voc): 24.3V
 Short-Circuit Current (Isc): 5.21A
 Optimum Operating Voltage (Vmp): 20.4V
 Optimum Operating Current (Imp): 4.91A
 Weight: 14.1lbs
 Dimensions: 41.8 x 20.9 x1.4 in

 RENOGY ADVENTURER – 30A PWM NEGATIVE-GROUND CHARGE CONTROLLER WITH LCD DISPLAY
 Nominal Voltage: 12 VDC/ 24 VDC
 Rated Charge Current: 30A
 Max. PV Input Voltage: 50 VDC
 Max. PV Input Power: 12V(400W) / 24V(800W)

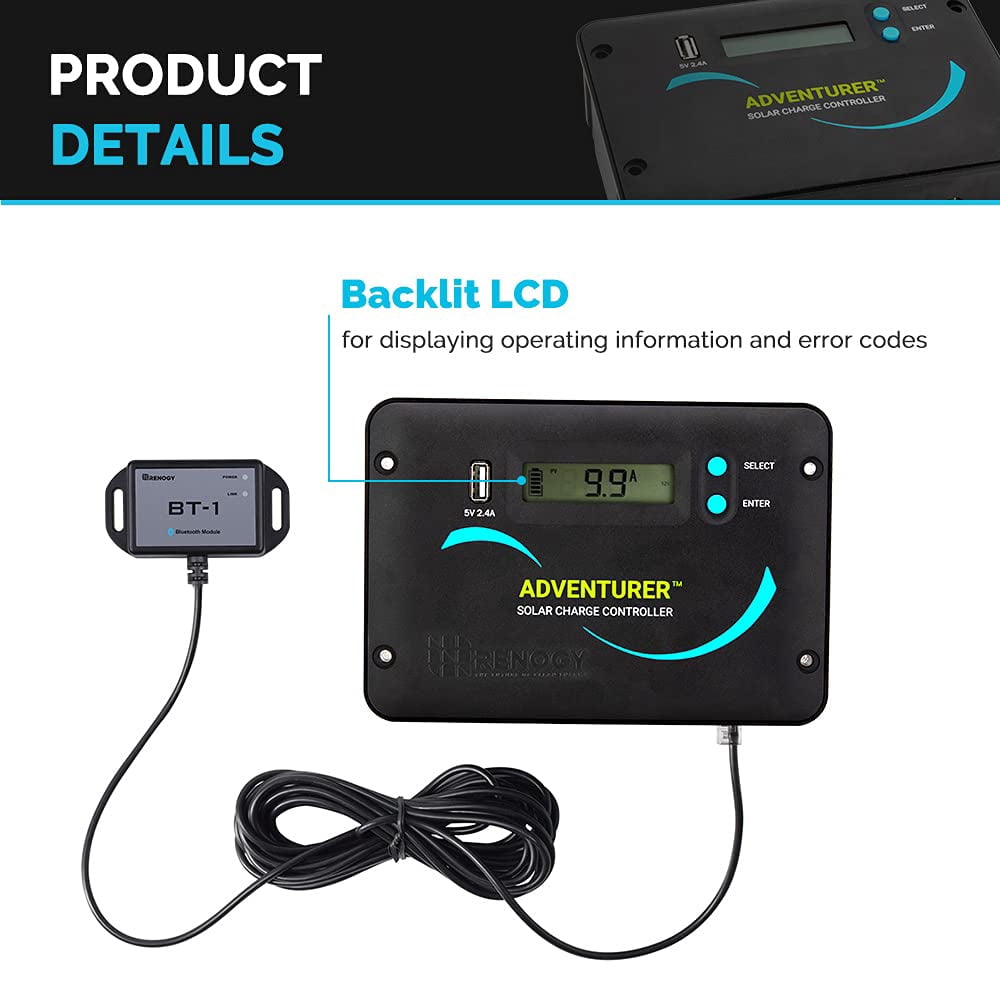

 RENOGY BT-1 BLUETOOTH MODULE
 Input Voltage: 5V-12V
 Dimensions: 2.6 X 2.01 X 0.61 In
 Communication Range: ≤15m
 Weight: 120 g (4.2oz)

 RENOGY SOLAR Y BRANCH CONNECTORS
 Withstanding Voltage: 1000V DC(TUV), 600V(UL)
 Protection Degree: IP67, mated
 Wiring Size Range: 10, 12, 14 AW
 Temperature: -40°F to +194°F

 RENOGY CABLE ENTRY HOUSING
 Material: UV-resistant ABS Plastic
 Recommended Adhesive: Sikaflex 252 or alike
 Cable Gland Diameter Range: 6mm – 12mm
 Weight (each component): 7.9 oz.
 Dimensions (l x w x h): 4.7 x 3.9 x 2.0 in

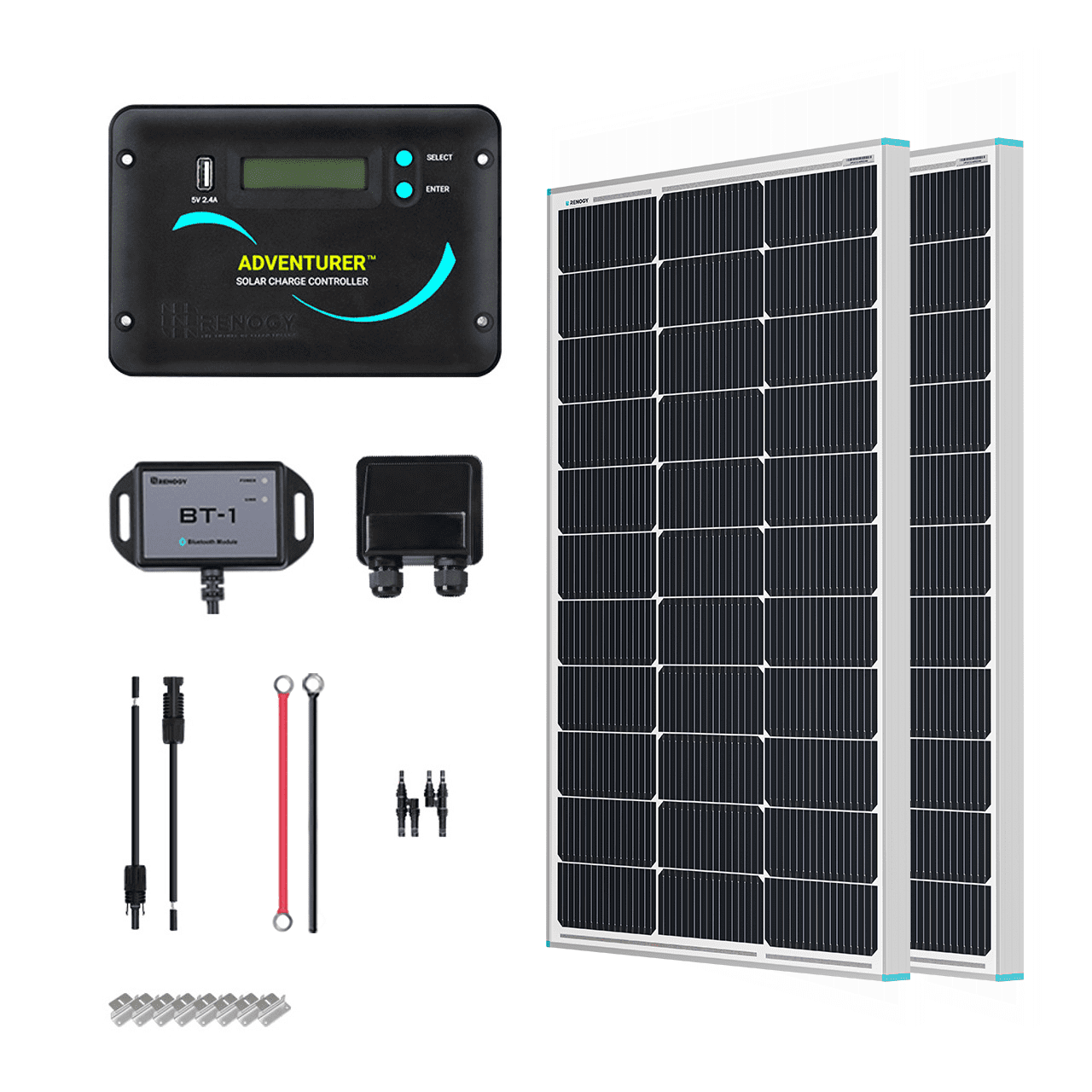

Package Includes:
 2 x 100W Mono Solar Panel
 1 x Renogy Adventurer-30A PWM Charge Controller
 1 x Renogy Solar Y Branch Connectors

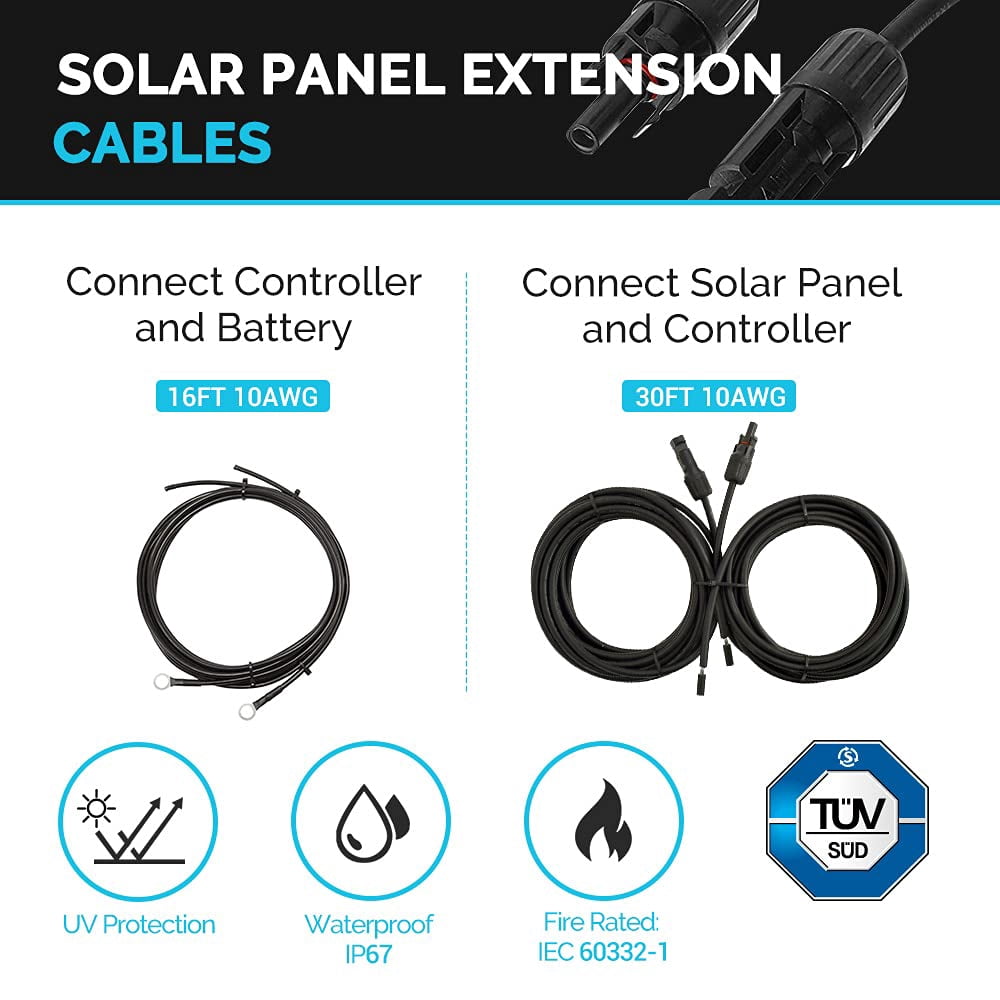

 1 x Renogy 30ft 10AWG Solar Adaptor Kit
 1 x Cable Entry Housing
 1 x Renogy 16ft 10AWG Tray Cables
 1 x Renogy BT-1 Bluetooth Module

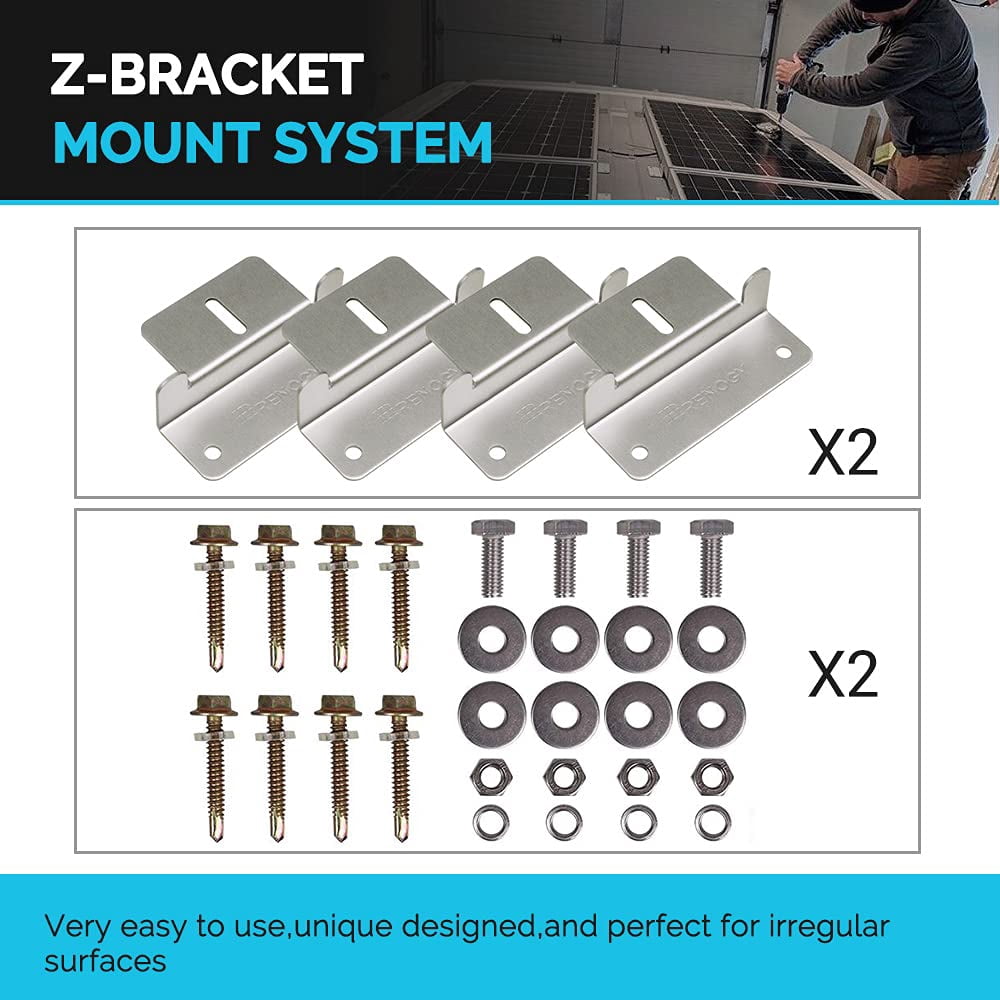

 2 x Mounting Z Brackets (2 × (8 × Long Cap Bolts, 4 × Short Bolts, 4 × Spring Washers, 4 × Washers, 4 × Z Shape Solar Panel Brackets, 4 × Nuts) )
