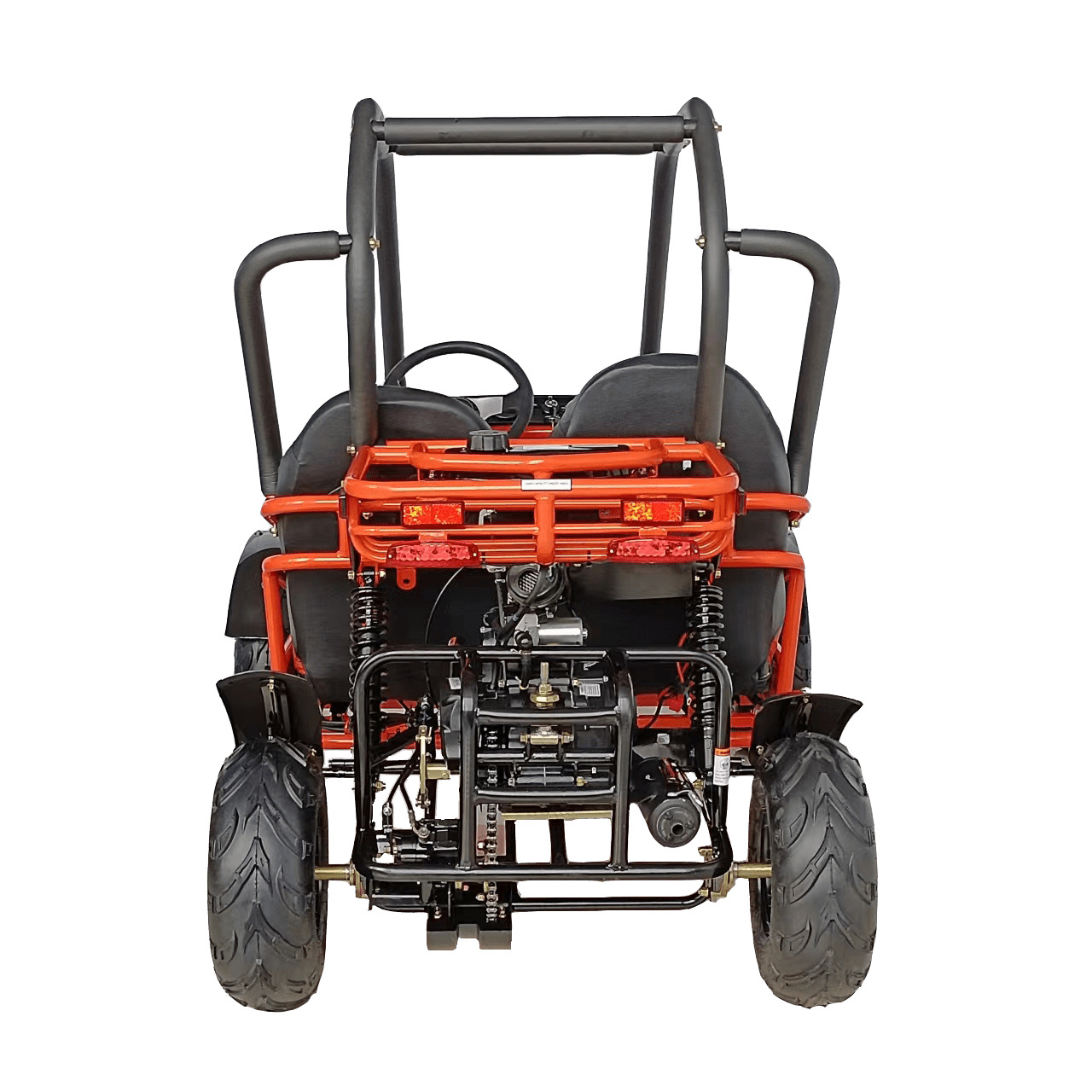

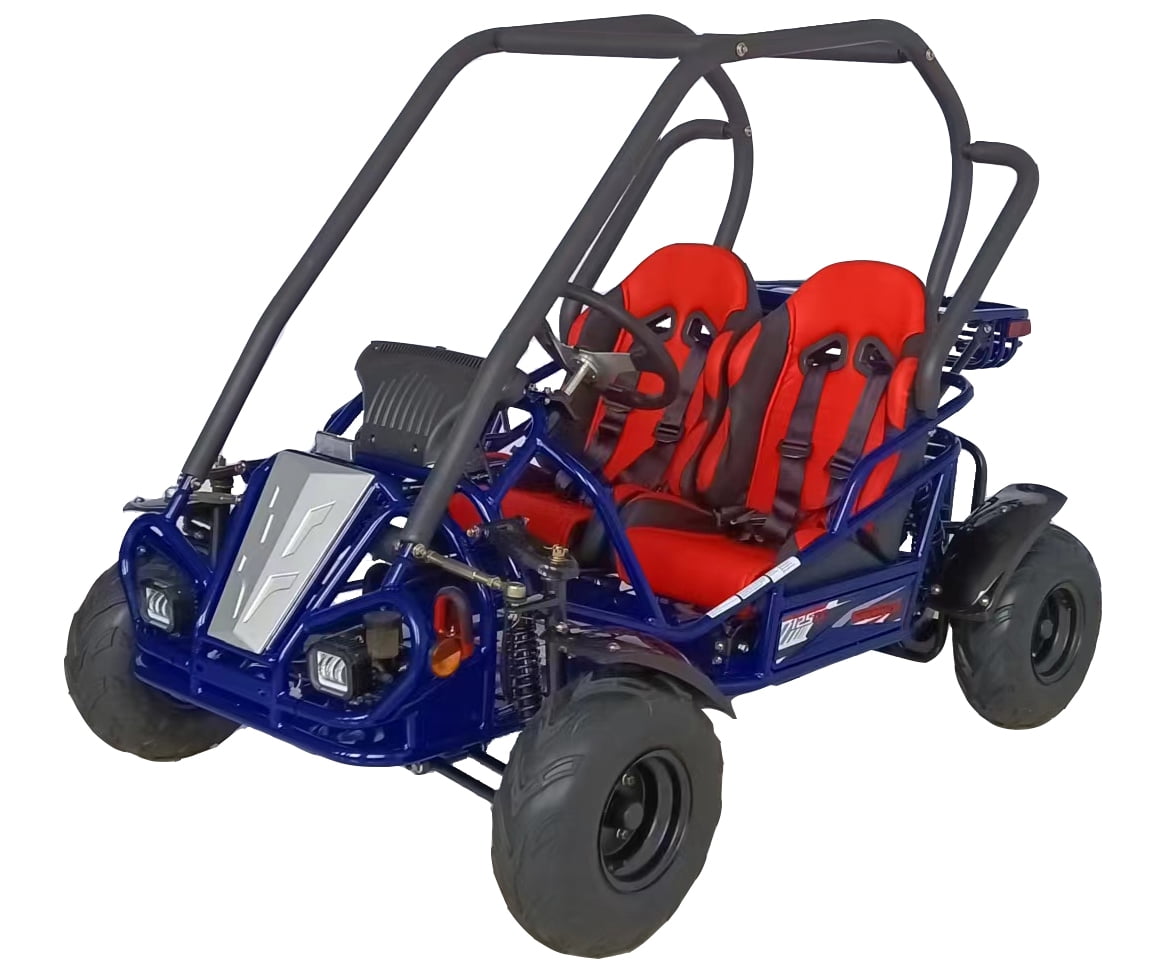

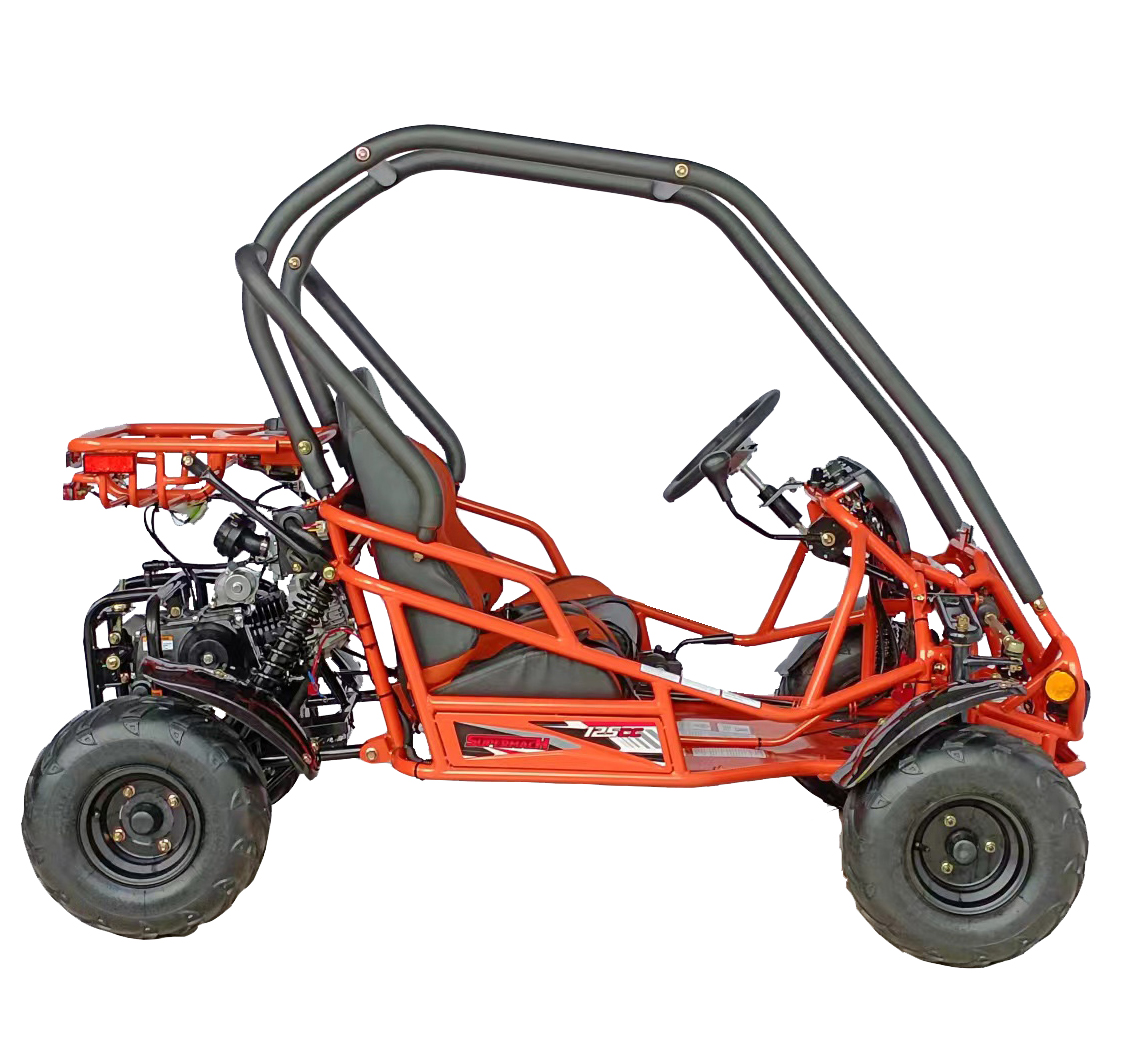

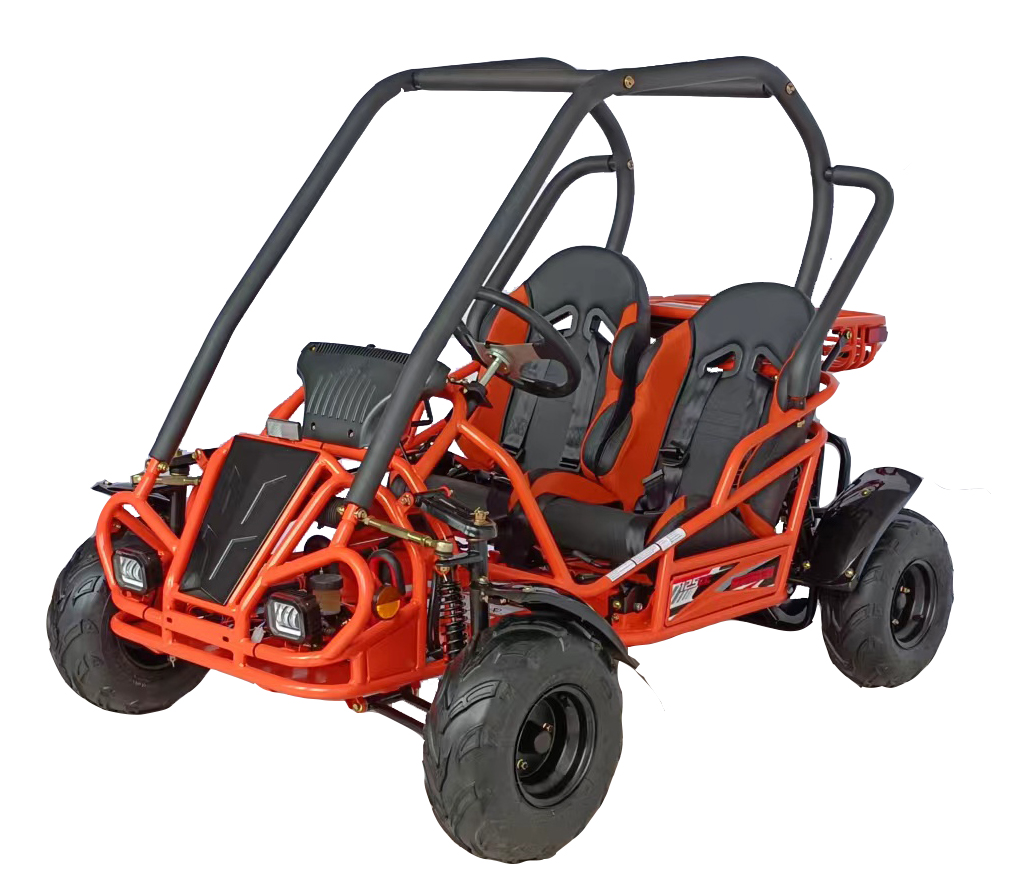

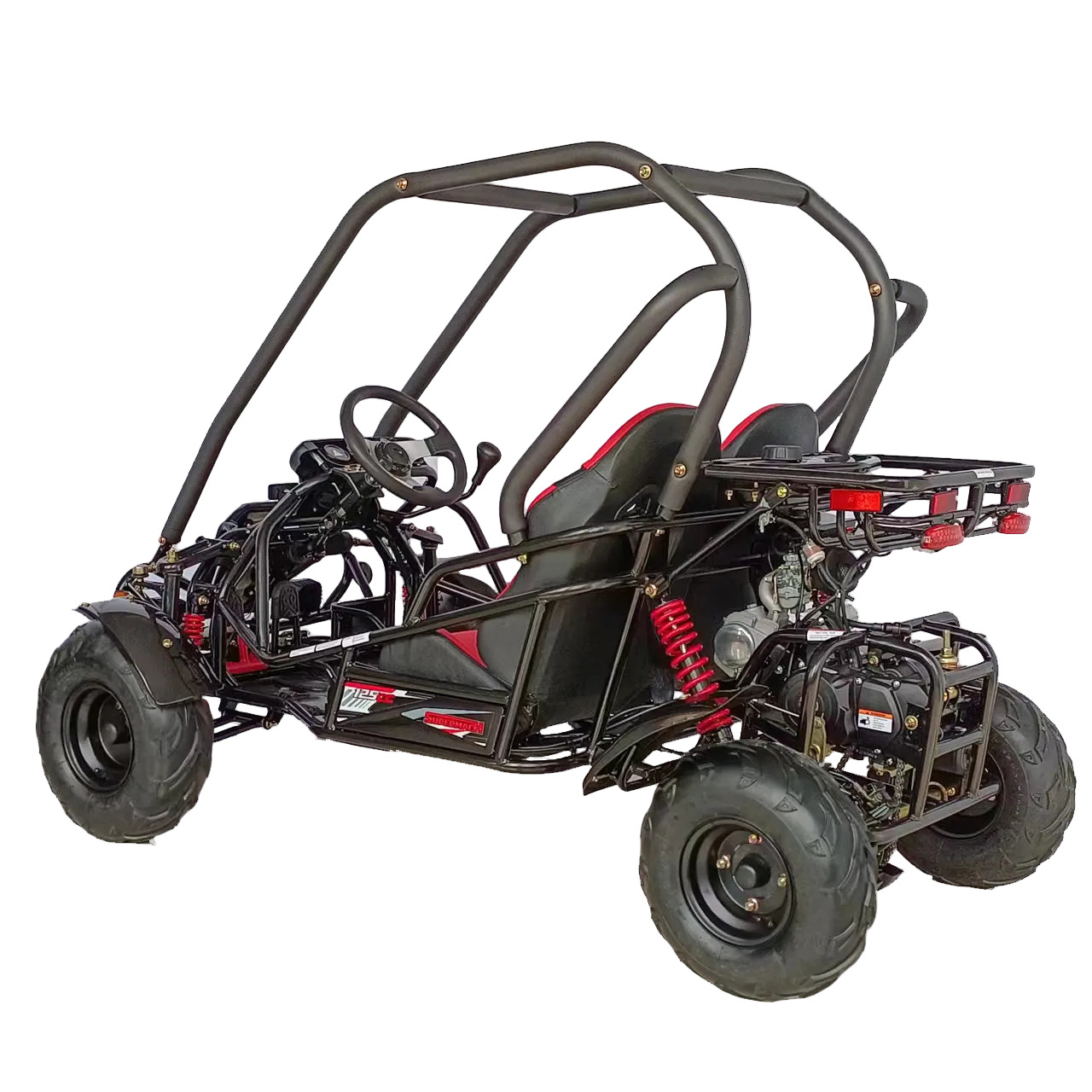

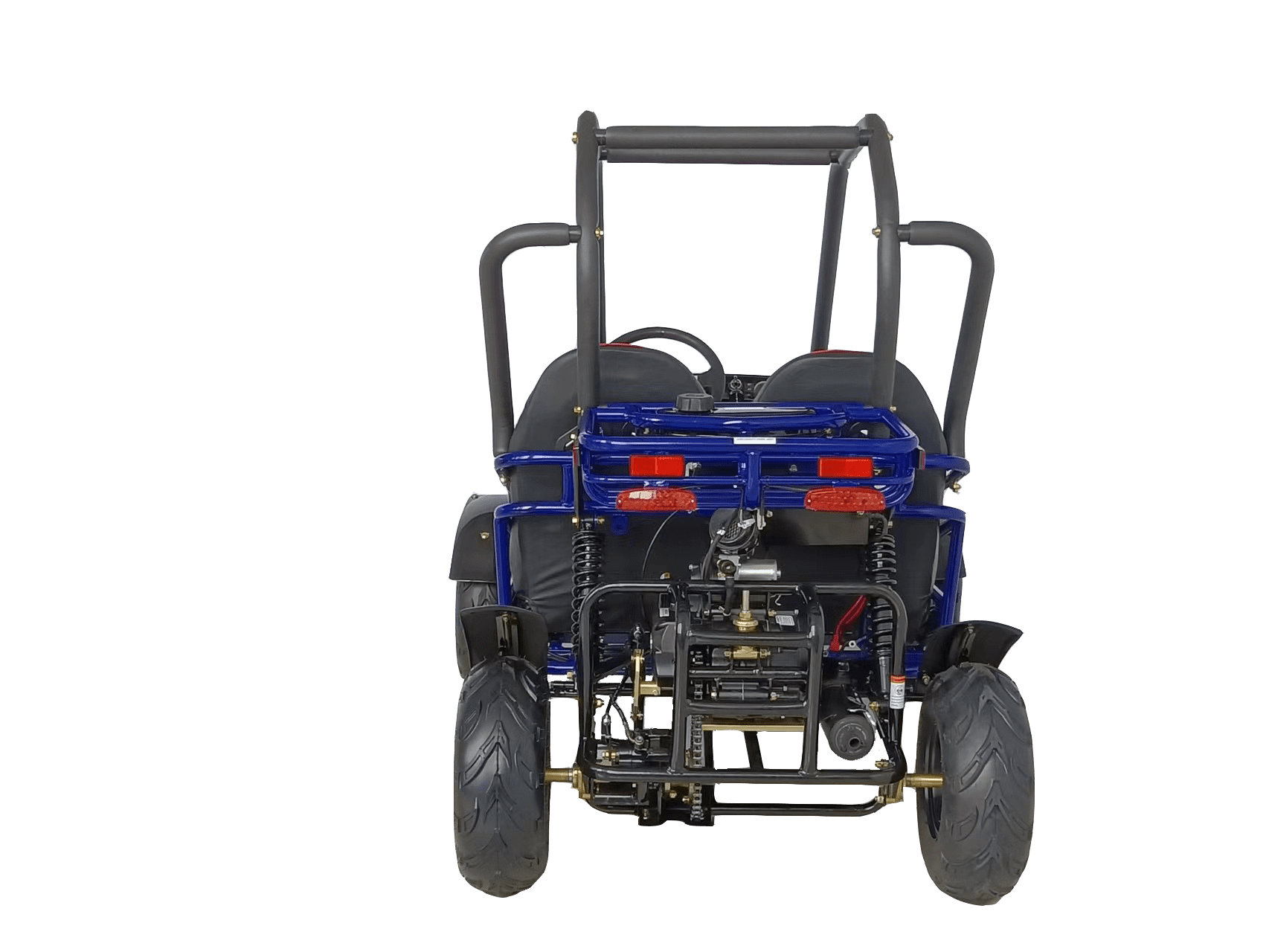

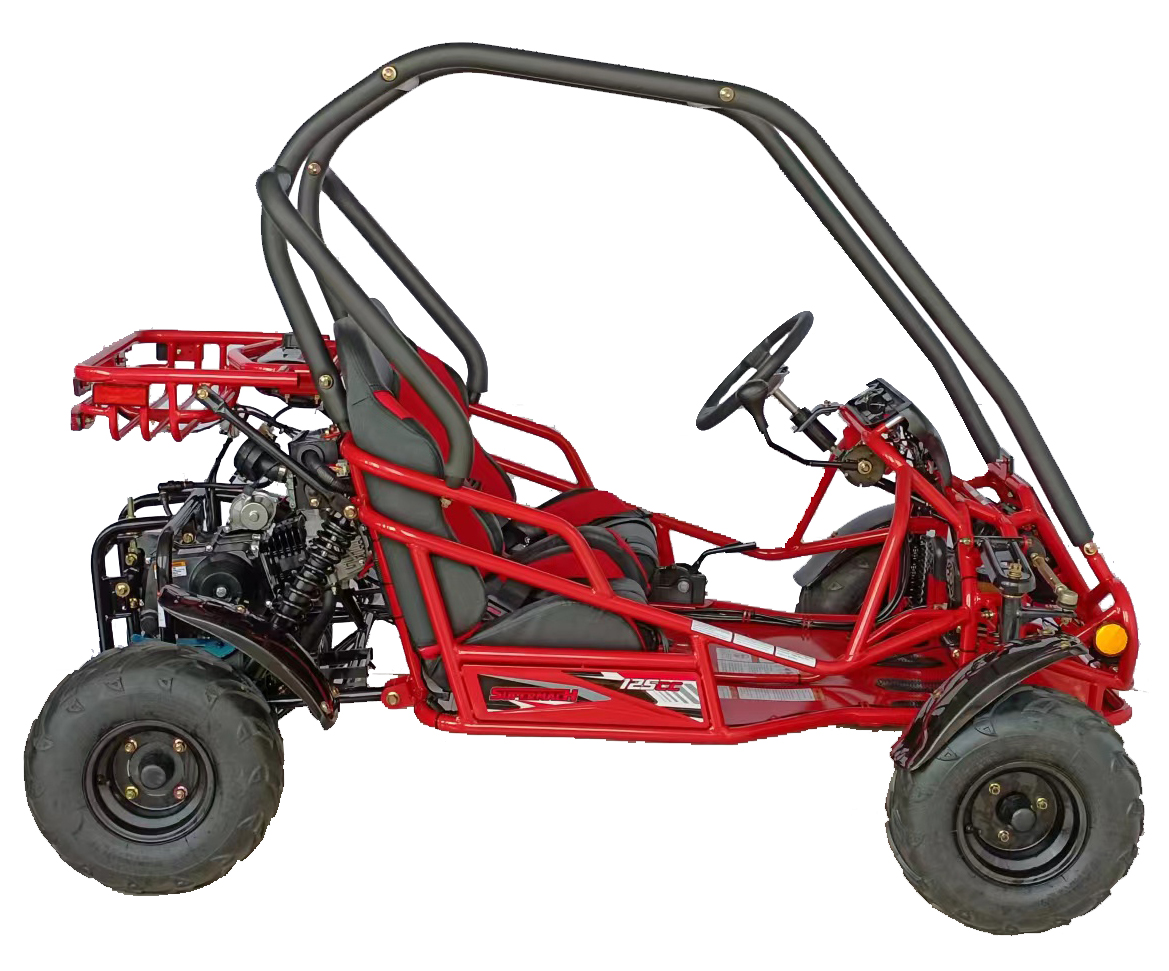

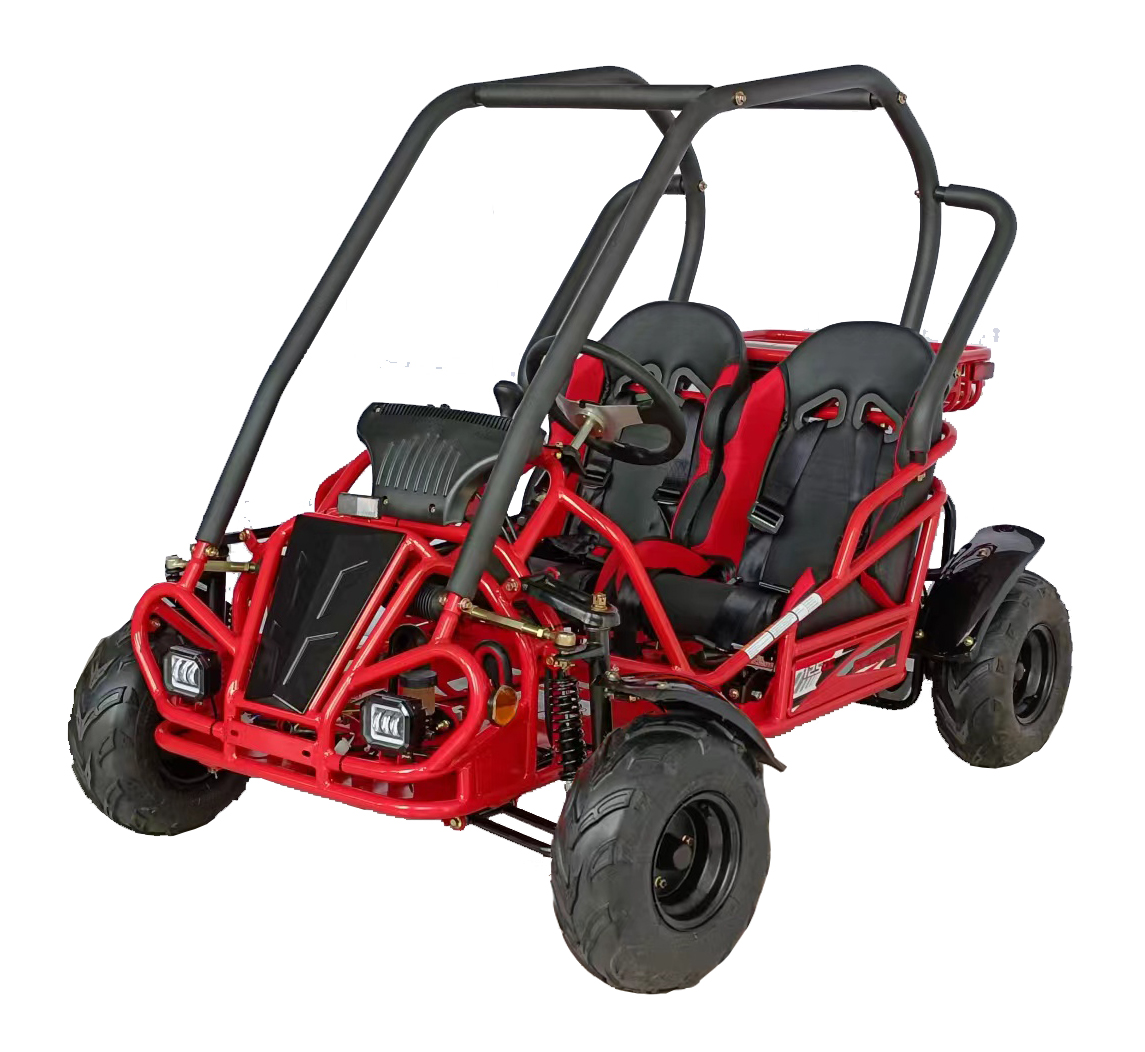

HHH Limited Edition 125cc Go Kart GKT125-9 Big Gokart with 3 Speed, 2 Seats, Large Size Kart for Youth (Black-Red) (Factory Packaged)

Engine Type :- Single cylinder, air-cooled, four-stroke
Cylinder diameter * stroke :- 52.4*55.5
Compression ratio :- 9.1:1
Engine Power(Max) :- 5.3KW/7500rpm
Engine Torque(Max) :- 8.0N.m/5500rpm
Transmission Fully Automatic :- Chain, rear wheel
3 Speed Forward + Neutral + Reverse
Bore × Stroke: 52 mm × 55.5 mm
Ignition :- CDI
Starting Mode :- Electric starting
Lubricating Mode :- Pressure splash type
Fuel Grade :- 87# or above
Idle Speed :- 1500rpm(+/-150rpm)
Fuse :- F15A
Spark Plug Clearance :- 0.6-0.7mm
Headlight :- 35W LED/Each
Battery :- 12V 5Ah
Spark Plug :- A7TC
Frame Structure :- Steel tube structure
Front Suspension: Dual A-Arm with Dual Shock Absorbers
Rear Suspension: Swing Arm with Double Shock Absorber
Gross Weight :- 308KG
Cargo Load :- 15KG
Rated Load :- 120KG
Net Weight :- 173KG
Gas Tank Size :- 2L
Fuel Consumption: 79.73 mpg
Tire Size :- Front/back :- 16*8-7
Rim Type :- Iron
Emergency Brake/Parking Brake :- Rear axle/hand control
Brake Type :- Hydraulic disc type
Turning Circle Radius :- 3500mm
Wheel track :- Front :- 1020mm rear :- 820mm
Wheelbase: 53.15 inches
Overall Dimensions (L × W × H): 71.65 × 48.03 × 52.36 inches
Carton Dimensions (L × W × H): 69.30 × 45.67 × 25.6 inches (additional assembly required)
