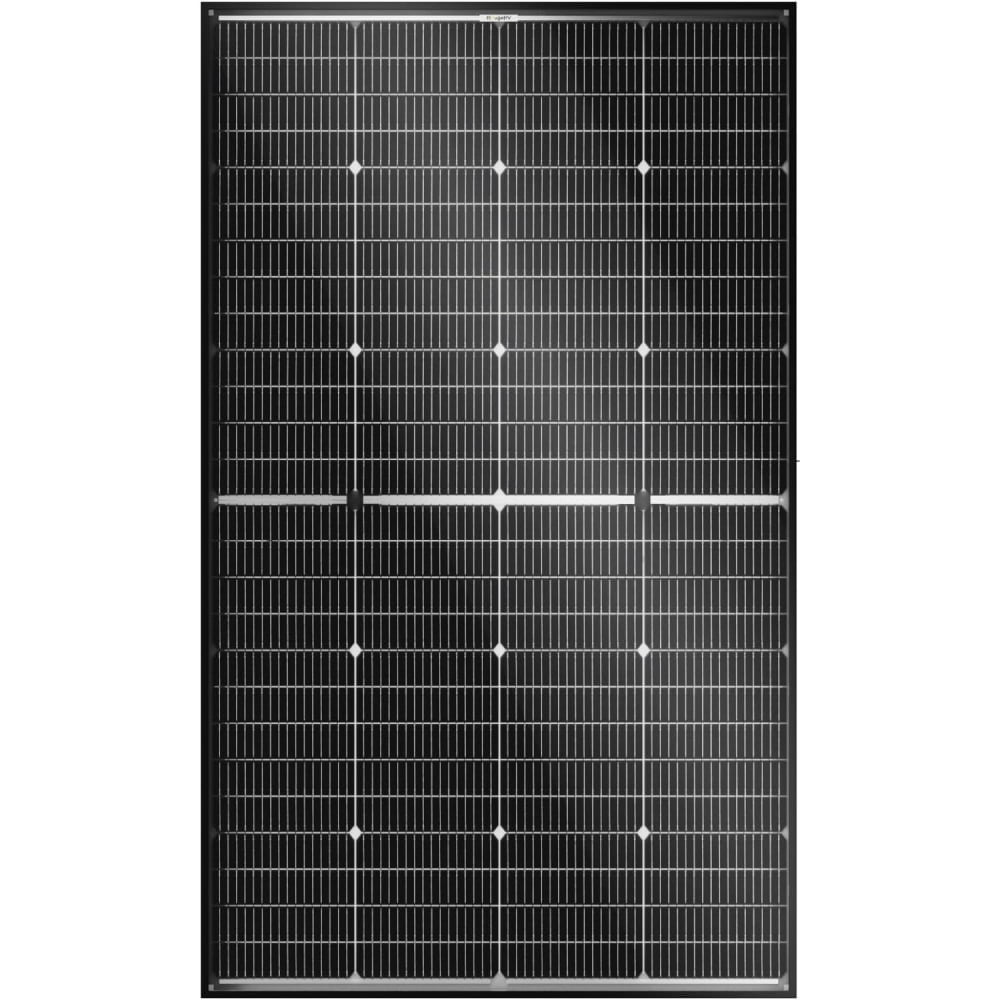

BougeRV N-Type 16BB 200W Bifacial Solar Panel for 24V Charger RV Camping Home Boat Marine Curve Surface

Features:
[N-TYPE Solar Cells]

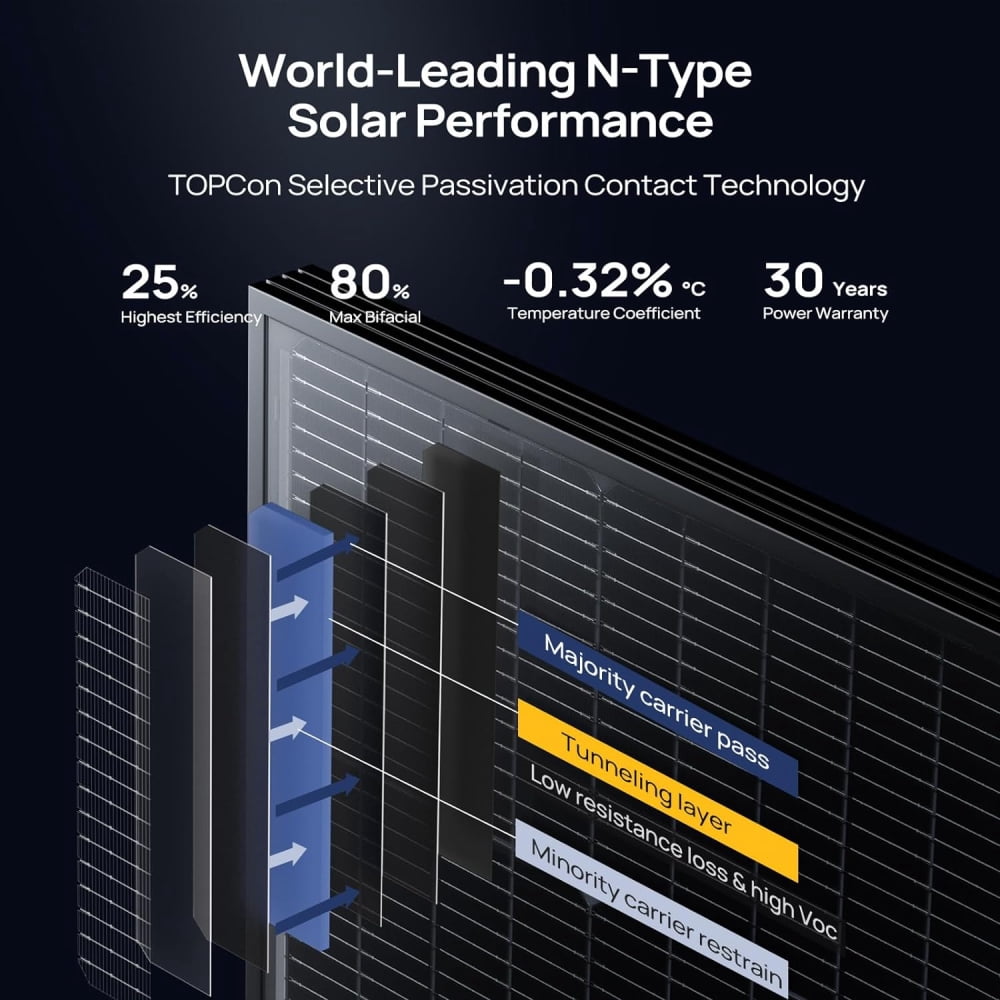

BougeRV N-TYPE 200-watt solar panels are made of N-TYPE solar cells, 25% Highest Conversion Rate. Compared to P-TYPE solar cells, N-TYPE solar cells add an advanced Industrial Tunnel Oxide Passivated Contact to the back of ordinary solar cells, this advanced technology allows the majority carrier to pass and restrains the minority carrier, so absorbs more light, making it low resistance loss and high voltage.

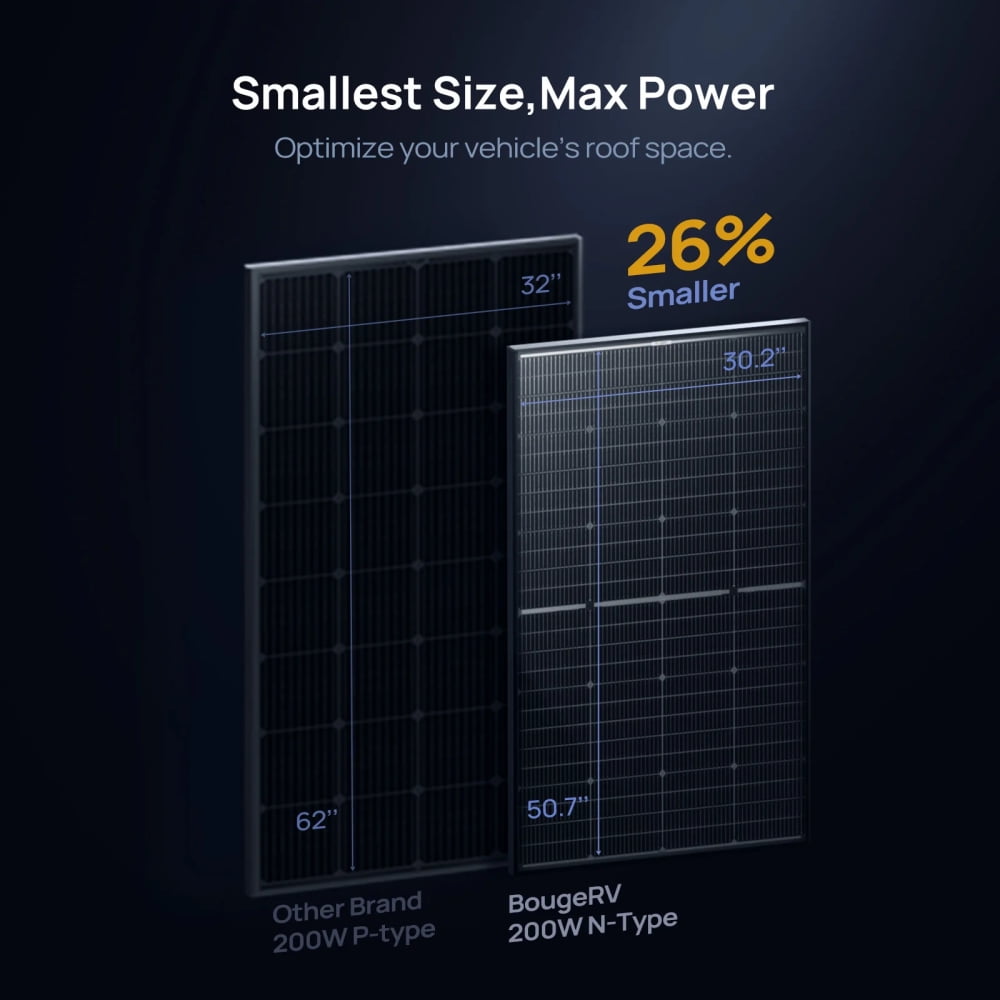

[Smallest Size, MAX POWER]

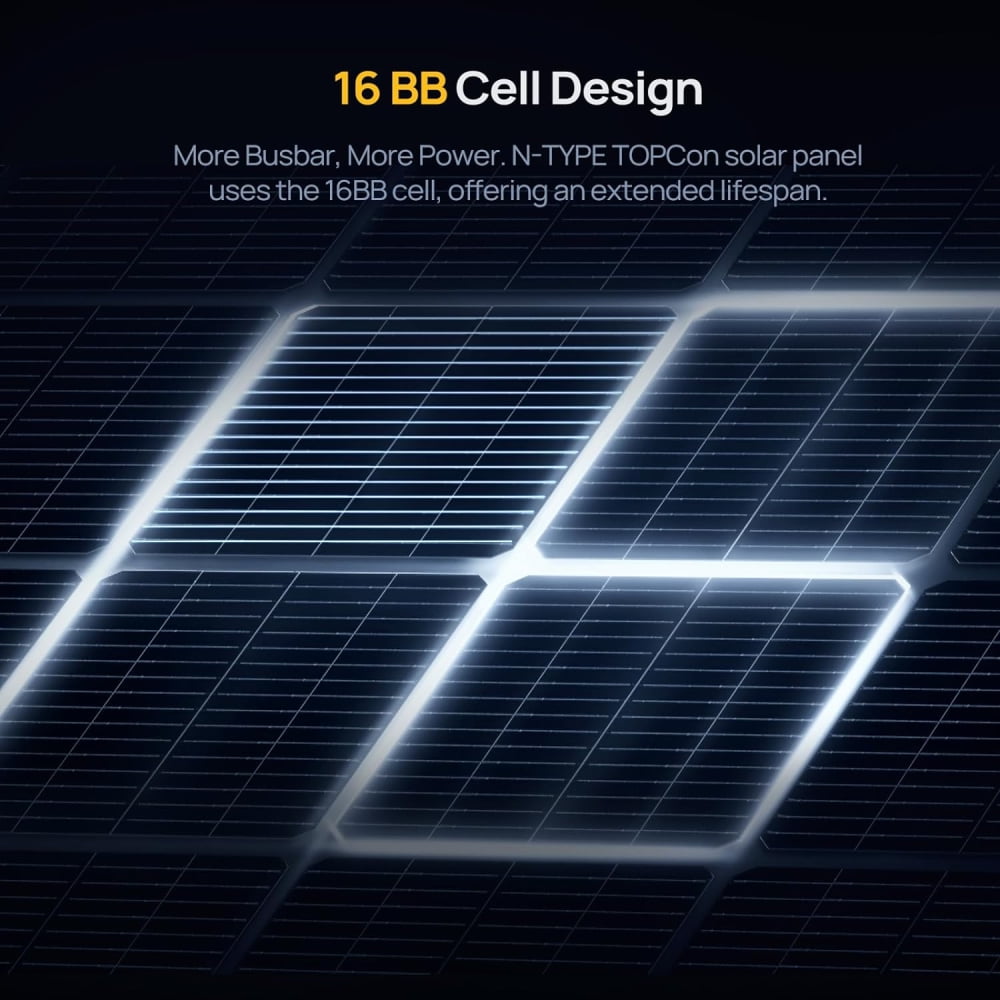

16BB cell design further improves the current collection capability. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%.

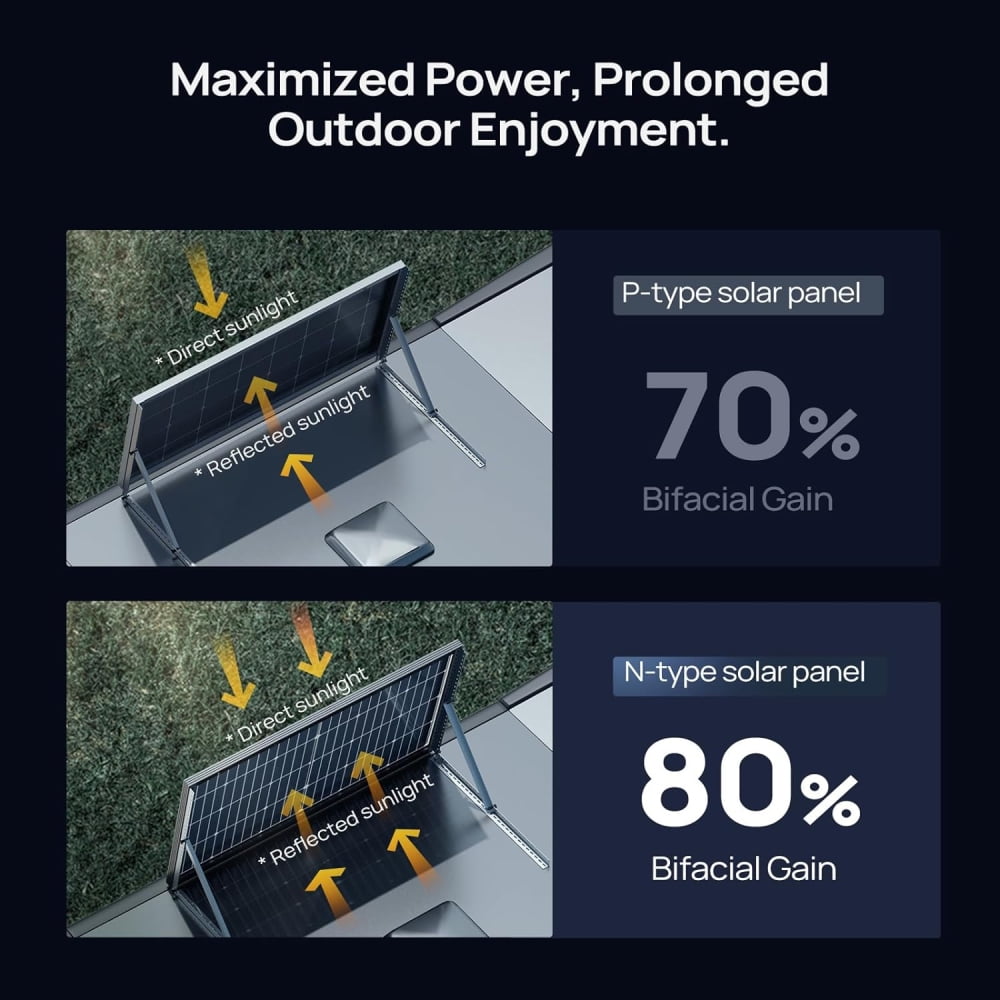

[Bifacial Design]
BougeRV bifacial solar panels feature a transparent backside, allowing it to absorb solar energy from both sides, increases the solar output by 30%, such as direct sunlight, refracted sunlight, and diffuse sunlight. N-type solar cells have an 80% bifacial gain while P-TYPE have only a 70% bifacial gain.

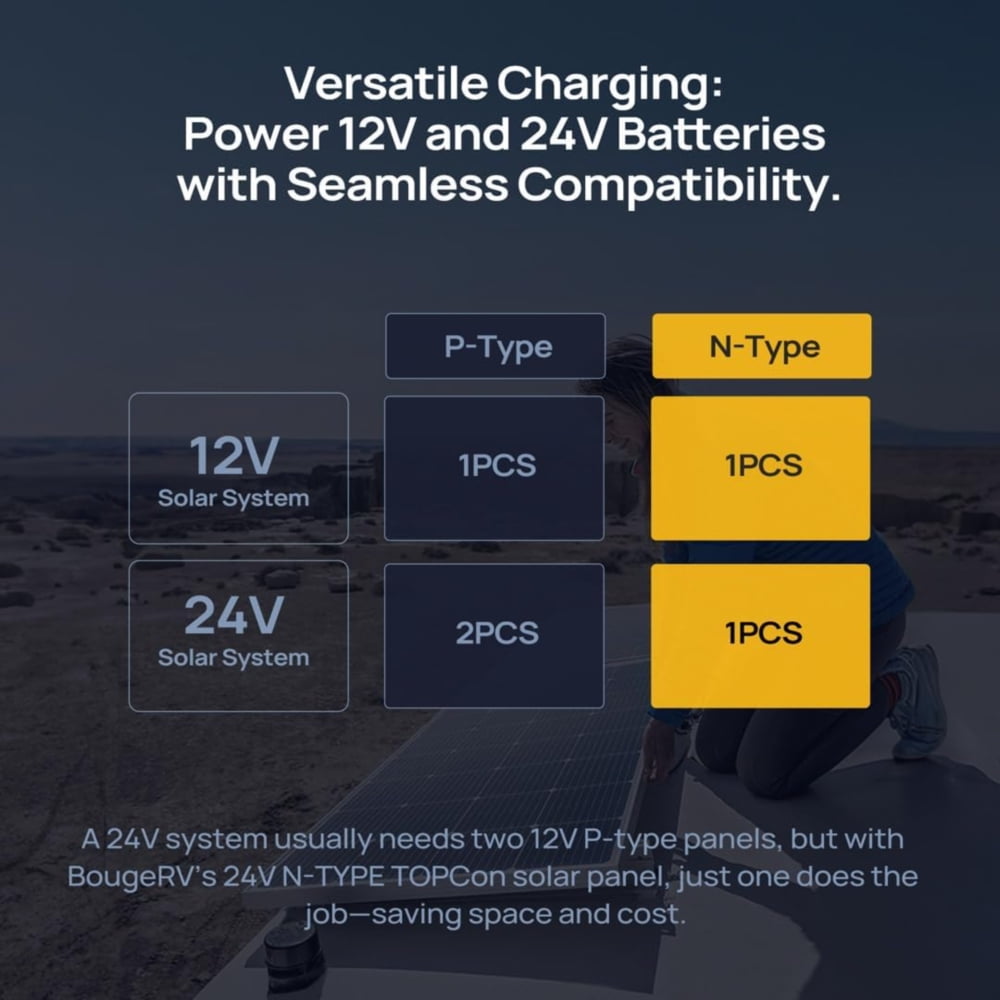

[Compatible With 12V/24V Battery]
The open circuit voltage of N-TYPE 200W solar panels is 36.4V. No need to connect in series or parallel, one panel can charge a 24V battery, avoiding current losses caused by series and parallel connections.

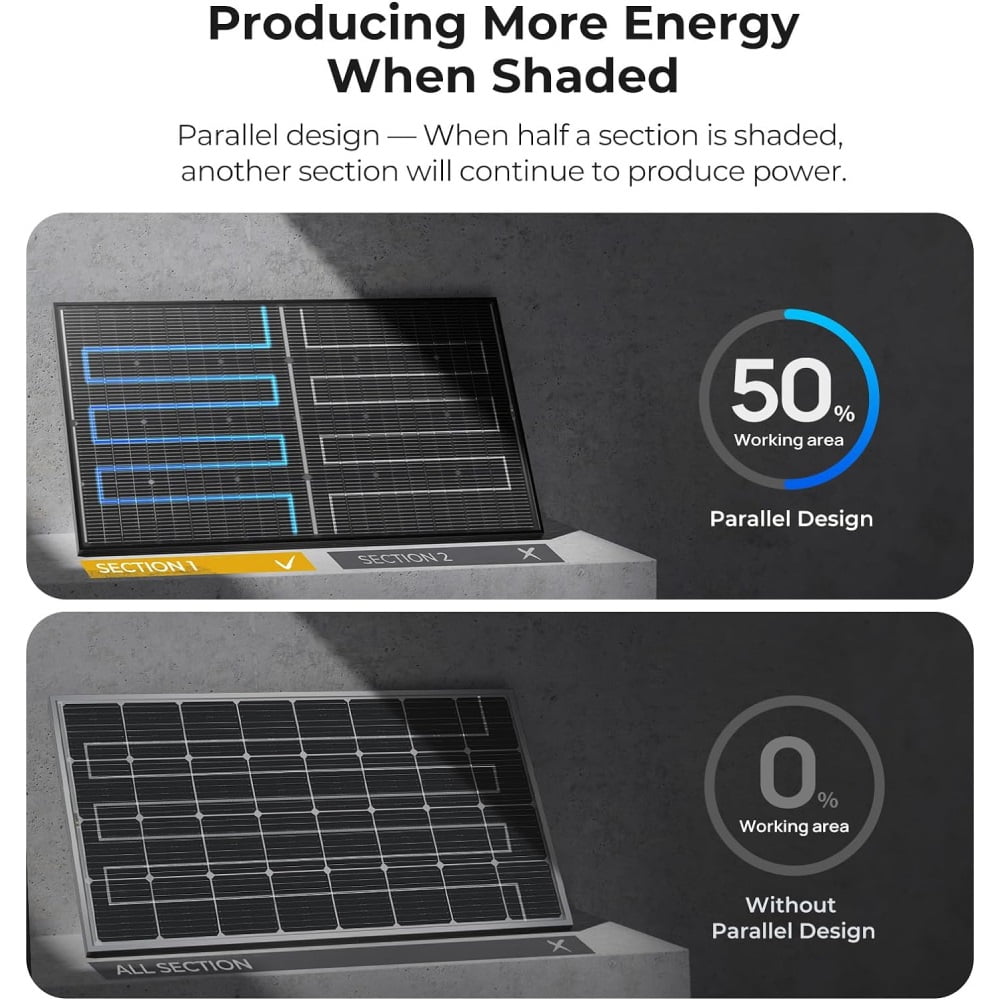

[Parallel Design Producing More Energy When Shaded]
N-TYPE 200W solar panel performs better in the shaded, when half a section is shaded, another section will continue to produce power.
[Compatibility and Wide Usage]
Compatible with on-grid and off-grid inverters, the BougeRV N-TYPE 200W solar panel is suitable for powering the house or for outdoor use. Corrosion-resistant aluminum material can withstand the changing outdoor environment and prolong its service life. It is easy to use and mount (pre-drilled holes on the back of the panel), and sophisticated to use with your RVs, boats, and other outdoor equipment.
[More 5-Year Power Lifespan]
According to laboratory test data, N-TYPE solar panels can have a service life of 30 years, while P-TYPE solar panels only have a service life of 25 years. Therefore, from a long-term investment perspective, investing in N-TYPE solar panels will yield better returns.

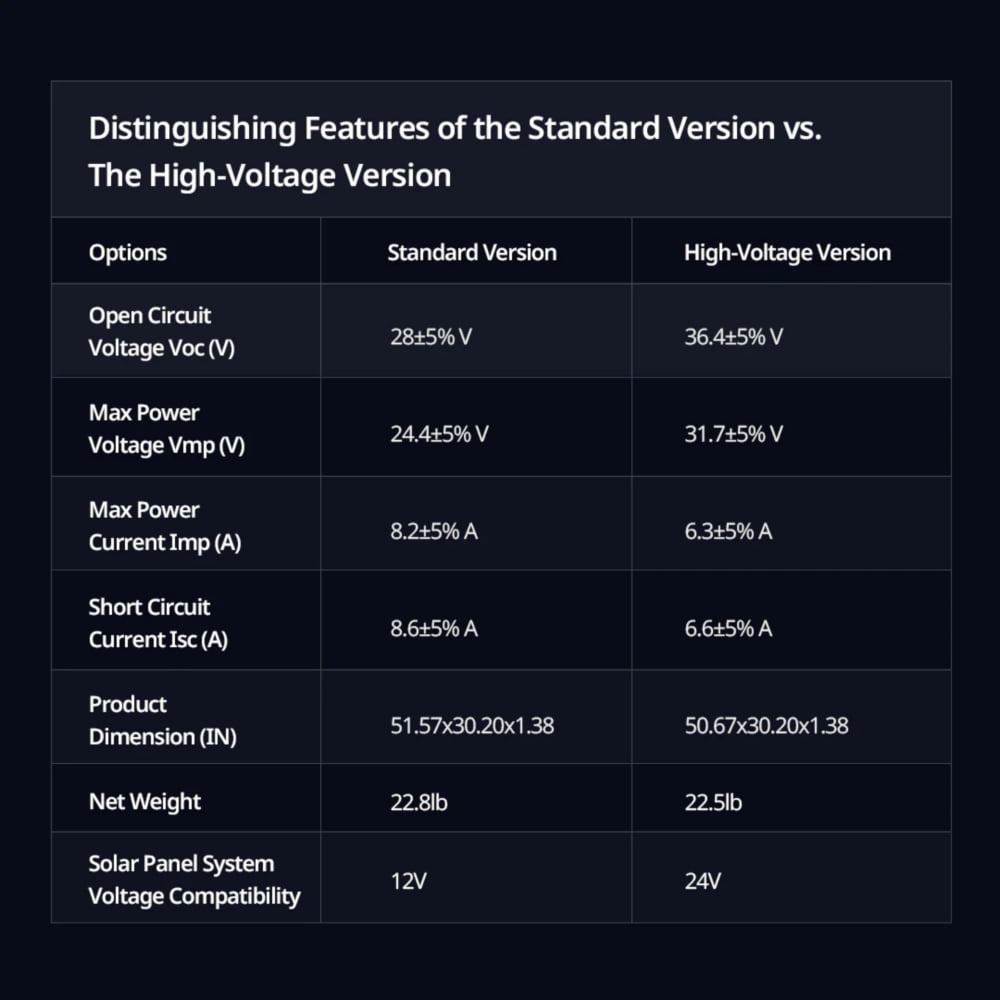

Specification:
Solar Cells Efficiency: 25%
Maximum Power: 200±3% W
Open Circuit Voltage:36.4V±5% V
Max Power Voltage: 31.7V±5% V
Max Power Current: 6.3A±5% A
Short Circuit Current: 6.6A±5% A
Series Fuse Rating: 15A
Max. System Voltage: 1000V DC
Upper Temperature Rating: 185 Degrees Fahrenheit
Dimensions: 50.7″L x 30.2″W x 1.4″H
Weight: 22.5lb
Material: Glass
Power Life: 30 Years
Color: Black

Package included:
1 * 24V N-TYPE 200W solar panel

Warranty & Certification:
We offer 10-year product warranty 30-year power warranty and lifetime warm-hearted service for you.
